UL20413 China Factory Produced Data Interconnection Curly Cable 60C 150V

Name: UL20413 China Factory Produced Data Interconnection Curly Cable 60C 150V
Brand: WCH Cable
Price: 0.338 USD

Quality UL20413 China Factory Produced Data Interconnection Curly Cable 60C 150V for sale

Brand Name : WCH Cable

Model Number : UL20413

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD0.338 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Conductor : High purity copper wire

Rated Temperature : 60 Deg C

Insulation : AWM Appliant Material

Rated Voltage : 150V

Jacket Material : Thermoplastic Polyurethane TPU

Standard Reference : UL758, UL20413

Contact Now

UL20413 China Factory Produced Data Interconnection Curly Cable 60C 150V

Conductor: High purity copper wire, tinned or bare, stranded or solid.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket: Thermoplastic Polyurethane TPU
Standard: Appliance Wiring Material UL758.
Rated Temperature: 60 deg C.
Rated Voltage: 150V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: Internal wiring & external wiring of electronic appliances.
Outstanding Feature: suitable for use with sensors.

Parameters of UL20413 China Factory Produced Data Interconnection Curly Cable 60C 150V

Style Number	Core Quantity	Copper Conductor		Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL20413	2C	30	7/0.100	0.23	0.80	0.76	3.60	381.00
	2C	28	7/0.127	0.23	0.90	0.76	3.90	239.00
	2C	26	7/0.16	0.23	1.00	0.76	4.00	150.00
	2C	24	11/0.16	0.23	1.10	0.76	4.20	94.20
	2C	22	17/0.16	0.23	1.30	0.76	4.60	59.40
	2C	20	21/0.178	0.23	1.50	0.76	5.00	36.70
	2C	18	34/0.178	0.23	1.80	0.76	5.60	23.20
	2C	16	26/0.25	0.23	2.00	0.76	7.80	14.60
	3C	30	7/0.100	0.23	0.80	0.76	5.50	381.00
	3C	28	7/0.127	0.23	0.90	0.76	5.70	239.00
	3C	26	7/0.16	0.23	1.00	0.76	5.90	150.00
	3C	24	11/0.16	0.23	1.10	0.76	6.10	94.20
	3C	22	17/0.16	0.23	1.30	0.76	6.50	59.40
	3C	20	21/0.178	0.23	1.50	0.76	7.00	36.70
	3C	18	34/0.178	0.23	1.80	0.76	7.60	23.20
	4C	30	7/0.100	0.23	0.80	0.76	5.70	381.00
	4C	28	7/0.127	0.23	0.90	0.76	5.90	239.00
	4C	26	7/0.16	0.23	1.00	0.76	6.20	150.00
	4C	24	11/0.16	0.23	1.10	0.76	6.50	94.20
	4C	22	17/0.16	0.23	1.30	0.76	6.90	59.40
	4C	20	21/0.178	0.23	1.50	0.76	7.40	36.70
	5C	30	7/0.100	0.23	0.80	0.76	6.00	381.00
	5C	28	7/0.127	0.23	0.90	0.76	6.30	239.00
	5C	26	7/0.16	0.23	1.00	0.76	6.40	150.00
	5C	24	11/0.16	0.23	1.10	0.76	6.80	94.20
	5C	22	17/0.16	0.23	1.30	0.76	7.40	59.40
	6C	30	7/0.100	0.23	0.80	0.76	6.40	381.00
	6C	28	7/0.127	0.23	0.90	0.76	6.70	239.00
	6C	26	7/0.16	0.23	1.00	0.76	7.00	150.00
	6C	24	11/0.16	0.23	1.10	0.76	7.30	94.20

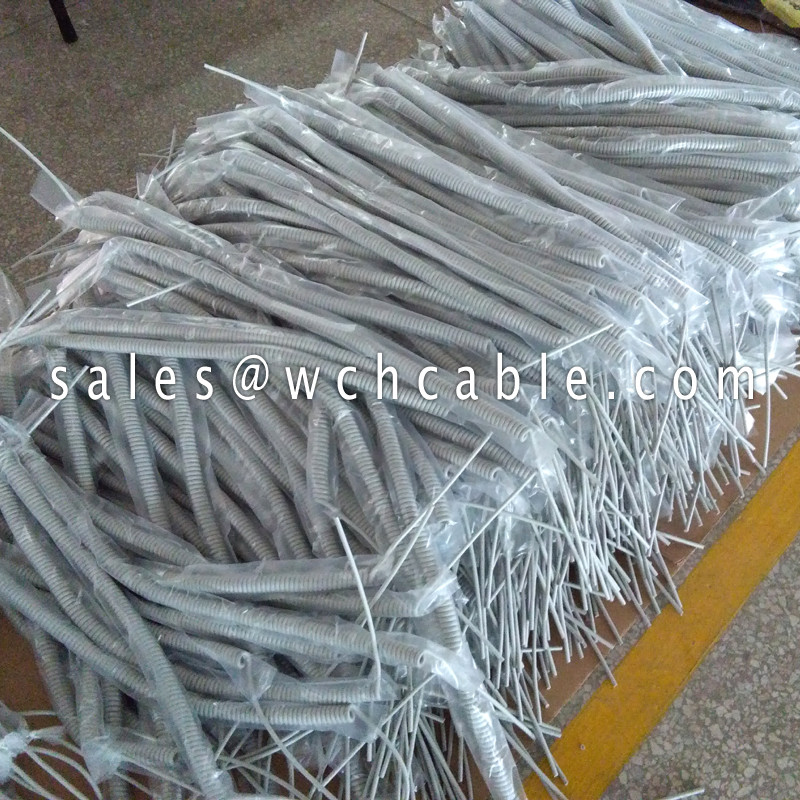

UL20413 China Factory Produced Data Interconnection Curly Cable 60C 150V

UL20413 China Factory Produced Data Interconnection Curly Cable 60C 150V

Raw cable extrusion lines

UL20413 China Factory Produced Data Interconnection Curly Cable 60C 150V

Tag: UL20413, spiral cable
