UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V

Brand Name : WCH Cable

Model Number : UL20346

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD0.03-0.32 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5,000,000 meters per Month

Delivery Time : 9 days for ready goods

Packaging Details : 152.5 meters per reel

Style Number : UL20346

Conductor Material : Highly Pure copper wires

Rated Temperature : 105C Degrees

Insulation Material : Thermoplastic Elastomer TPE

Rated Voltage : 300V

Jacket Material : Thermoplastic Elastomer TPE

Contact Now

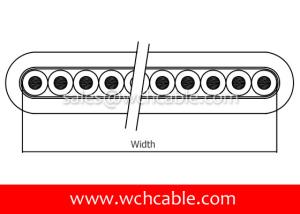

UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V
UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V
Conductor: High Purity Copper Wire
Rated temperature: -30C to 105C
Rated voltage: 300V
Insulation: Eco-friendly Thermoplastic Elastomer TPE
Jacket: Eco-friendly Thermoplastic Elastomer TPE
Feature: UL & CSA Approval, RoHS Guaranteed.
Reference Standard: UL758, UL1581, CSA22.2.
Style Number: UL20346
Manufacturer: Dongguan WCH Cable Industrial Co., Ltd.
Origin: Dongguan, China
Custom Make Service is Available.
Please consult our customer service for discussion of what you like.

Technical Parameters
Conductor Cores Number 　 2-68 Pins
Specification (AWG) 30
Section Area (mm²) 0.051
Material 　 Solid tinned copper
Configuration (mm) TS1/0.254
Stranded Diameter (mm) 0.254
Insulation Ave Thickness (mm) 0.18
Min Thickness (mm) 0.15
Over Diameter (mm) 0.635*43.18
Material 　 TPE (RoHS)
Colour 　 Gray
Copper Foil Material 　 One-side Copper Foil
Jacket Ave Thickness (mm) 0.41
Min Thickness (mm) 0.33
Over Diameter (mm) 1.52x44.2
Material 　 TPE (RoHS)
Colour 　 Gray
Electrical
Capability		 Rated Temperature (℃) 105
Rated Voltage (V) 300
Conductor Resistance (Ω/KM 20℃) 361
Insulation Resistance (MΩ/KM 20℃) 10
Other
Properties		 Fire Retardance 　 VW-1
UL Style Number 　 20346
Environmental Standard 　 Lead Free
　 　 RoHS & Reach Compliant

WCH Cable - Professional Manufacturer of Ribbon Cable, UL Cord, Cable Assembly

UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V

UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V

UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V

UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V

UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V

UL20346 TPE Dual Insulation Flat Ribbon Cable AWG30 PITCH 0.635mm 2-68Pins 105C 300V
